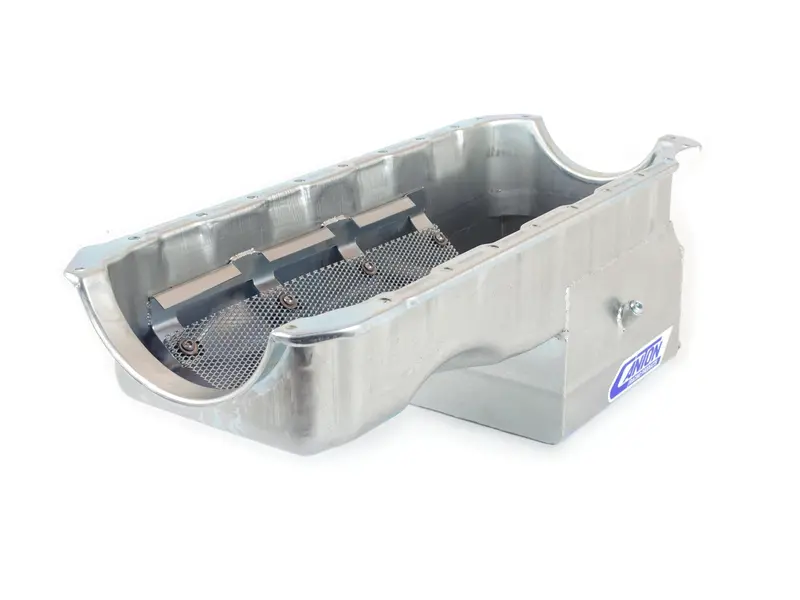

Canton Drag Race Oil Pan For Big Block Chevy Mark Iv Engines

Description

This BBC bracket drag oil pan is for Mark 4 blocks. It has a 9″ deep by 9-1/2″ long sump and a 7 qt. system capacity. Takes up to a 4.5″ stroke with a steel rod. This pan requires our 20-190 pickup. Will work with stock or aftermarket starters.

• 7 qt System Capacity
• Drag Race Trap Door Baffle System
• Screen Windage Tray
• Crank Scraper
• Provision For Our Pan Mounted Dipstick
• Magnetic Drain Plug

Attributes:

• Brand Name: Canton
• GTIN: 00887753711779
• Baffled: Yes
• Capacity: 7 Quart System Capacity
• Crank Scraper Included: Yes
• Dipstick Port: Yes
• Drain Plug Included: Yes
• Engine: For B.B. Chevy Mark 4 Blocks
• Feature 1: Features Competition Oil Recovery System
• Feature 2: Removable Screen Windage Tray
• Feature 3: Built in Crank Scraper
• Feature 4: Trap Door Baffle For Oil Control
• Feature 5: Provision for Canton Pan Mounted Dipstick
• Feature 6: Magnetic Drain Plug
• Finish: Silver Plating
• Gasket or Seal Included: No
• Hardware Included: No
• Kicked Out: No
• Material: 16 Gauge Steel
• Pickup Included: No
• Recommended Accessory 1: 20-190 – Pickup for BBC Pumps
• Recommended Accessory 2: 20-850 – Universal Dipstick Kit 1/4? N.P.T. Fitting
• Recommended Accessory 3: 20-854 – Universal Steel Braided Dipstick Kit 1/4″ N.P.T. Fitting
• Recommended Accessory 4: 88-300 ? BBC Mark IV Oil Pan Gasket
• Stoke: 4.5 inches
• Sump Depth: 9 inches
• Sump Width: 8.375 inches
• Windage Tray Included: Yes

Extended Information:

• Country of Origin: US
• Emissions : CARB Eligible
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 26 x 14 x 10 inches
• Weight: 17 POUNDS
